Fundamental types of crystal lattices and their symmetry operations

Solid state physics, Lecture — III, IV

All articles in this series can be found here.

This article is purported to serve as an introduction to a solid state physics course for the 3 year degree physics honors class. It was delivered to the same class on 26th July 2017. Expect some refinement, add-ons, content expansion etc, in the web version.

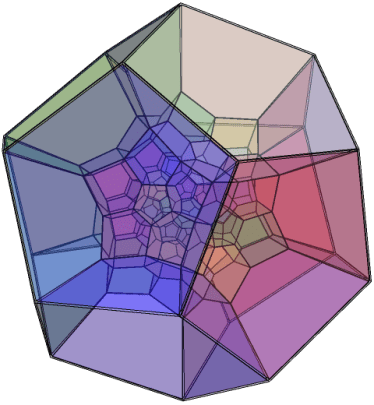

lattice1 — Photo-credit: click to left. A representative structure for symmetry as would be exhibited by eg a lattice.

Topics covered

a. Types and classes of crystals,

b. Symmetry operations in crystals

In this lecture we will follow through our basic knowledge gained in the last lecture, — lecture — I, II, and shed light on the most interesting properties of crystal lattices, viz. their symmetry properties. Based on their properties we will classify them into various types and classes.

lattice3 — Photo-credit: click to left. Various types of basic lattices.

i. In our last two lectures, here, — we saw that all lattices must satisfy a translational symmetry given by the lattice displacement vectors $R_n = n_1 \vec{a}_1 + n_2 \vec{a}_2 + n_3 \vec{a}_3$ which qualifies them to be known as Bravais lattice.

ii. Lattices satisfy additional symmetry operations. But due to the constraint of translational symmetry the total number of symmetry operations that the lattices can satisfy is reduced to a minimum.

iii. This means in 2-dimensional lattice constructs we have only 5 types of lattices which satisfy additional symmetry operations. In 3-dimensional geometry there are a total of 14 classes of lattices.

iv. Thus in 3-dimensional lattices the 14 classes of Bravais lattices are categorized into 7 types or systems of fundamental lattices.

v. The extra symmetry operations are

various rotations,
inversion about a space point and
reflection about a plane passing through a lattice point or
their possible combinations.

vi. There are further symmetry operations that non-Bravais lattices such as “lattices with a basis” must satisfy. These symmetry are referred to as “point group symmetry” and together with obedience to translational symmetry referred as “space group symmetries“. There are only 230 such fundamental symmetry operations.
vii. A rotation is a transformation through angles of $\frac{2\pi}{n};\,\,\,\, n = 1,\,2,\,3,\,4,\,\&\,6$ only, about an axis passing through a lattice point so that the lattice symmetry — translational that is, is preserved. The 5-fold symmetry is not possible and 1-fold symmetry is trivial.

viii. Inversion symmetry: A lattice point is taken as origin. All other lattice points given by $\vec{r}$ are transformed to $-\vec{r}$ so that lattice — translational symmetry, is preserved.

ix. Reflection symmetry: Its transformed through a plane about which a reflection or mirror image of all points retain their symmetry of the lattice.

When conditions are imposed on primitive lattice vectors — read lecture — I, II, linked here, to know how we define them, that is relations are established that restrict their size and the angle between the various dimensions, the resulting lattices are known as special lattice types, in 2-dimension there are 5 and in 3-dimension there are 14.

We show them below in the diagrams.

The first figure shows; oblique, square and hexagonal lattice.

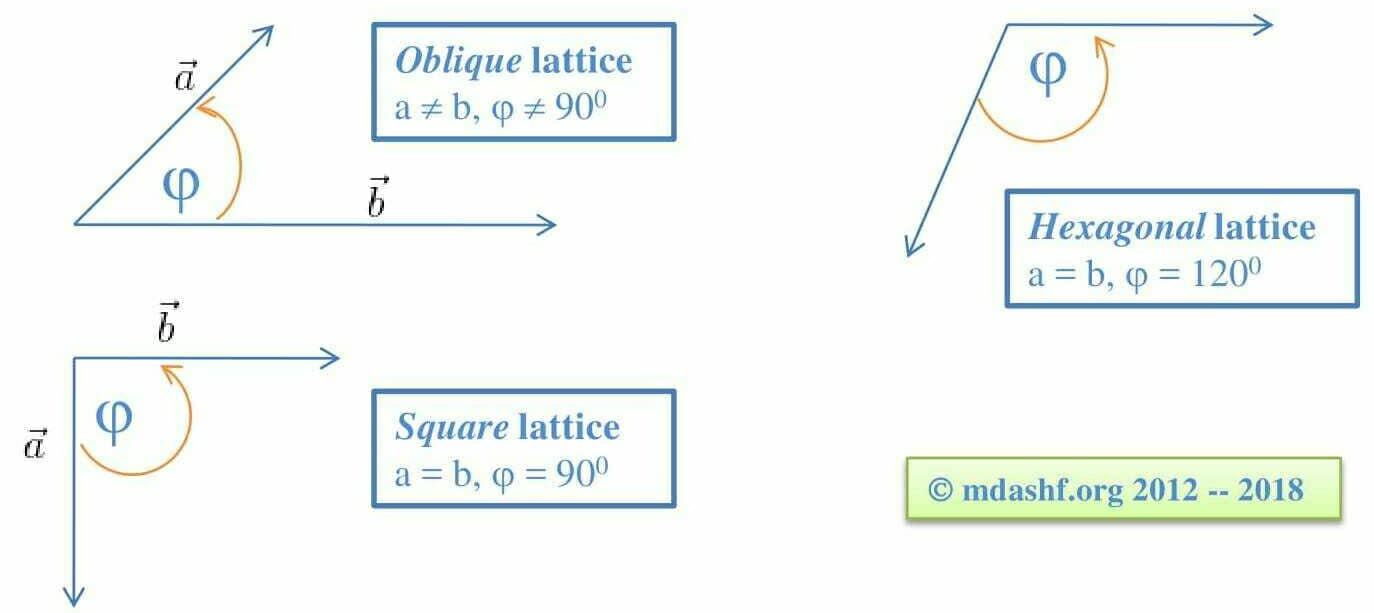

basic lattices in 2-dimensional plane: Oblique, square and hexagonal.

The figure below shows; rectangular and centered rectangular lattices.

basic lattices in 2-dimensional plane: rectangular and centered rectangular lattices, showing primitive and non-primitive cell type.

The following table shows the 14 types of special lattice types with their various properties.

System	Type of lattice	Restriction on cell	Symmetry	Bravais lattice (B)	Point groups (P)	Product (BP)
Triclinic	Simple	$a\neq b \neq c$ and $\alpha \neq \beta \neq \gamma\neq 90^0$	Trivial	1	2	2
Monoclinic	Simple Base-Centered	$a\neq b \neq c$ and $\alpha = \beta = 90^0 \neq \gamma$	One, 2-fold	2	3	6
Orthorhombic	Simple Base-Centered Body-Centered Face-Centered	$a\neq b \neq c$ and $\alpha = \beta = \gamma =90^0$	Three mutually ⊥ 2-fold	4	3	12
Tetragonal	Simple Base-Centered	$a= b \neq c$ and $\alpha =\beta = \gamma= 90^0$	one, 4-fold	2	7	14
Cubic	Simple Body-Centered Face-Centered	$a= b = c$ and $\alpha =\beta = \gamma= 90^0$	Four, 3-fold	3	5	15
Trigonal or Rhombohedral	Simple	$a= b = c$ and $\alpha =\beta = \gamma\neq 90^0$	One, 3-fold	1	5	5
Hexagonal	Simple	$a= b \neq c$ and $\alpha =\beta = 90^0$ and $\gamma= 120^0$	One, 3-fold	1	7	7

Now in the following table we will summarize the properties of the 3 most important lattice types, the simple cubic (sc), body centered cubic (bcc) and face centered cubic (fcc) types.

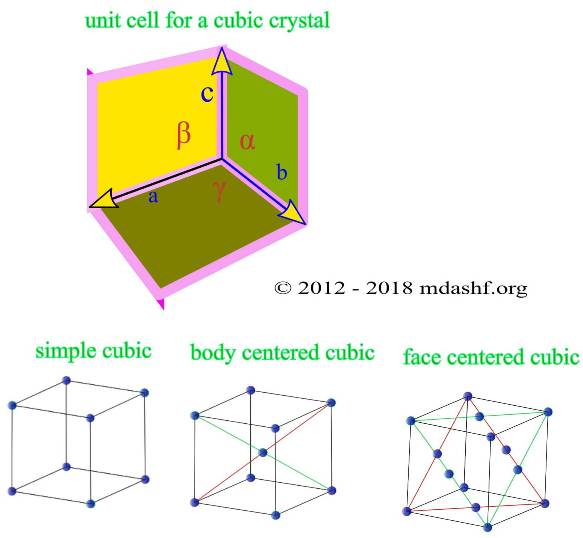

3 most important lattice types, the simple cubic (sc), the body centered cubic (bcc) and the face centered cubic (fcc) types

Parameter	simple cubic	body centered cubic	face centered cubic
Volume of conventional cell	$a^3$	$a^3$	$a^3$
Lattice points per cell	$1$	$2$	$4$
Nearest neighbors	$6$	$8$	$12$
Volume of primitive cell	$a^3$	$\frac{a^3}{2}$	$\frac{a^3}{4}$
Lattice points per unit cell	$\frac{1}{a^3}$	$\frac{2}{a^3}$	$\frac{4}{a^3}$
Nearest neighbor distance	$a$	$\frac{\sqrt{3}}{2}a=0.866\,a$	$\frac{a}{\sqrt{2}}=0.707\,a$
Second neighbors	$12$	$6$	$6$
Distance to second neighbor	$\sqrt{2}a$	$a$	$a$
Packing fraction	$\frac{\pi}{6}=0.524$	$\frac{\sqrt{3}}{8}\pi=0.680$	$\frac{\sqrt{2}}{6}\pi=0.740$

Primitive cells of cubic crystals

Home-work: you should try to understand the primitive cells of other types of crystals.

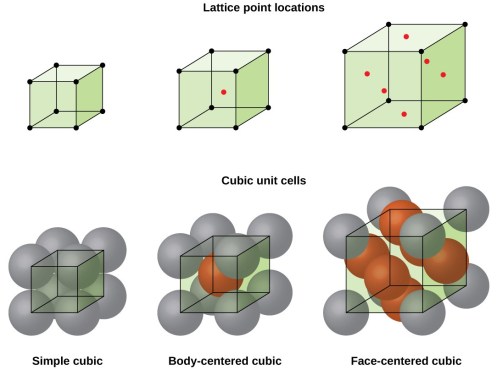

face centered cubic — Photo-credit: click on link to left.

Body centered cubic: Lattice point at origin is connected to lattice point at body centers of 3 cubes whose intersection is origin. Primitive cell is a rhombohedron. This is a primitive unit cell different from the conventional cell. See images below.

$\vec{a}_1 = \frac{a}{2}(\hat{x}+\hat{y}-\hat{z})\,\, \,\,\vec{a}_2 = \frac{a}{2}(-\hat{x}+\hat{y}+\hat{z}) \,\, \,\,\vec{a}_3 = \frac{a}{2}(\hat{x}-\hat{y}+\hat{z}) \\ \\ \alpha,\beta,\gamma = 109^0 \, 28' \,\, \,\,edge:\,\,\frac{\sqrt{3}}{2}a$

Conventional unit cell — BCC: Photo-credit: click link to left.

BCC primitive unit cell. Photo-credit: mdashf.org. Note; originally this image and related info is available in Charles Kittel, text book.

Face centered cubic: Lattice point at origin — at corner, is connected to lattice point at face. Primitive cell is a rhombohedron.

$\vec{a}_1 = \frac{a}{2}(\hat{x}+\hat{y})\,\, \,\,\vec{a}_2 = \frac{a}{2}(\hat{y}+\hat{z}) \,\, \,\,\vec{a}_3 = \frac{a}{2}(\hat{z}+\hat{x}) \\ \\ \alpha,\beta,\gamma = 60^0$
